ACTUATOR REPAIR KIT FOR MODEL# 9600618R001
APPLICATION POWERRAC DOUBLE ACTING CYLINDER ACTUATOR
CONSISTING OF:
(1) SEAL O-RING, P/N 1197212, POS. B10 : QTY.1 EA
(2) COVER GASKET R2, P/N 1197212, POS.B13: QTY. 1 EA
(3) GSKT END COVER,P/N 1214075, POS. B16 : QTY. 2 EA
(4) GASKET BRKT P/N 1250026, POS. B28 : QTY.1 EA
(5) SEAL O-RING, P/N 1083667, POS. B9C : QTY. 1 EA
DEZURIK

C26896-BPP Gasket For Cage Control Valve
Valve Model# : SD2K
Valve Serial#: 02GS53660/01-07
Copes Vulcan

Ball Valve
Size: 3/4 In
Type: Female Threaded Ends
Body Material: Bronze
Operation: Latch Lock Lever Operated
Pressure Rating: 150 WSP, 600 WOG
Manufacturer: Dura Valves

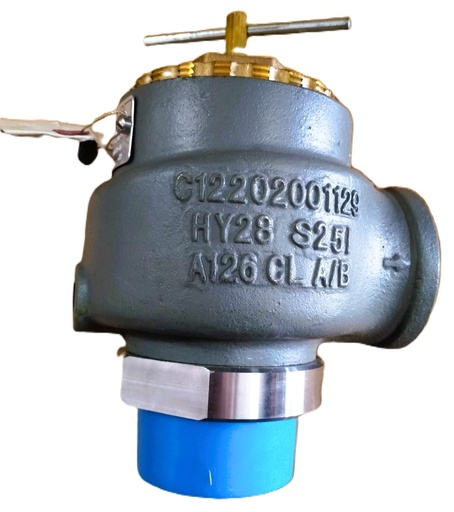

0337-H03ANE SAFETY RELIEF VALVE
DESIGN RATING 0.8 KG/CM2,
BODY MATERIAL IRON A 126,
VALVE SIZE 2 X 2, TRIM SS
CONNECTION THREADED,
SET PRESSURE 11.4 Psig
KUNKLE VALVE

Valve: 1/4TV/HAT-110
Open Temperature: 110°F (43.3°C)
Close Temperature: 120°F (48.9°C)
Therm-Omega

Gate Valve 800# OS&Y ASTM A105 Body
Conventional Port Trim 8, Bolted Bonnet
API 602 B16.34
Smith # 0800OOOOO

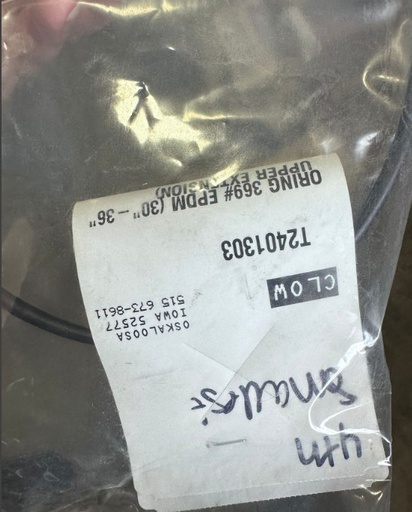

369 EPDM ORING 30" - 36" UPPER EXTNSION
T2401303 - 0SKAL00SA
CLOW

O-RING SET
* 12 (O-RING #369-1NO)
* 15 (O-RING #371-1 NO)
* 17 (O-RING#352-1NO)
* 19 (O-RING#236-4NO)
* 21 (O-RING COVER OUTER-1 NO);
* 25 (O-RING#348-1NO) &
* 31 (O-RING COVER INNER-1NO);
O-RING MATERIAL BUNA N RUBBER;
FOR GATE VALVE SIZE: 30 INCH,
MNFR: KENNEDY VALVE COMPANY
DRAWING: LRW 50/51/52/53
REV: 0 ITEM: 12, 15, 17, 19, 21, 25, 31
MATL BUNA/RUBBER
KENNEDY VALVE CO

IA-KV8010 Packing
PTFE Type Ring
DWG: 70308M02 | Pos: 52 | Rev: 0
For Tag/Equip No: 14-HV-4107
Equip/Tag Model No: 6X1233HL RF
Orbit Cooper Cameron

Safety Relief Valve
Set Pressure: 50 PSI
Type: Safety Relief Valve
Manufacturer: Kunkel
Part Number: 0337-K01AKM

Part No: 01-99525-59 Valve Nozzle, Size: 1/2" X 1/2"
Material PP , FOR SAFETY RELIEF VALVE
Model: GLVC-10AL45-128
Inelt: 1/2 IN CL 150 FF, Outlet: 1/2 IN CL 150 FF
Mfg: COI Technology

*** Picture for reference only

O-Ring
Inside Diameter 40 Mm Width 5.33 Mm
Material Nitrile Shore Hardness 60a
PN: 1D785306992
Mnfr: Fisher Controls Int'l. Inc

Washer
Material: SS 18-8
For Vent Valve
Part No: SP322-B
Shand & Jurs

Durco G4 Plug Valve, Class 300
Raised Face Flange, 2 Way Plug
ASTM A216 Gr. WCB (Carbon Steel) Body
ASTM A351 Gr. CF8M (SS316) Plug
ASTM A995 Gr. CD4MCuN (Duplex SS) Top Cap
PTFE Sleeve, Lever Operator
B7 Top Cap and Adjuster Fasteners
Drilled and Tapped Flange Pads
Mfg: Flowserve-Durco

8" Durco BX2 Butterfly Valve, Lug, Class 150
ASTM A351 Gr. CF8M Body (SS316)
ASTM A351 Gr. CF8M Disc (SS316)
ASTM A564 UNS S17400 Type 630 (Condition H1075) Shaft
PTFE/Fiberglass (PGP) Bearing, Single PTFE Cup & Cone Shaft Seal
PFA Seat/Viton Energizer, Bare Stem, Valve Per CM4083
Mfg: Flowserve - Durco

6" Durco BX2 Butterfly Valve, Lug, Class 150
ASTM A351 Gr. CF8M Body (SS316)
ASTM A351 Gr. CF8M Disc (SS316)
ASTM A564 UNS S17400 Type 630 (Condition H1075) Shaft
PTFE/Fiberglass (PGP) Bearing, Single PTFE Cup & Cone Shaft Seal
PFA Seat/Viton Energizer, Lever Operator, Valve Per CM4083
Mfg: Flowserve - Durco
